PVC Cable Compounds Compounding Pelletizing Production line

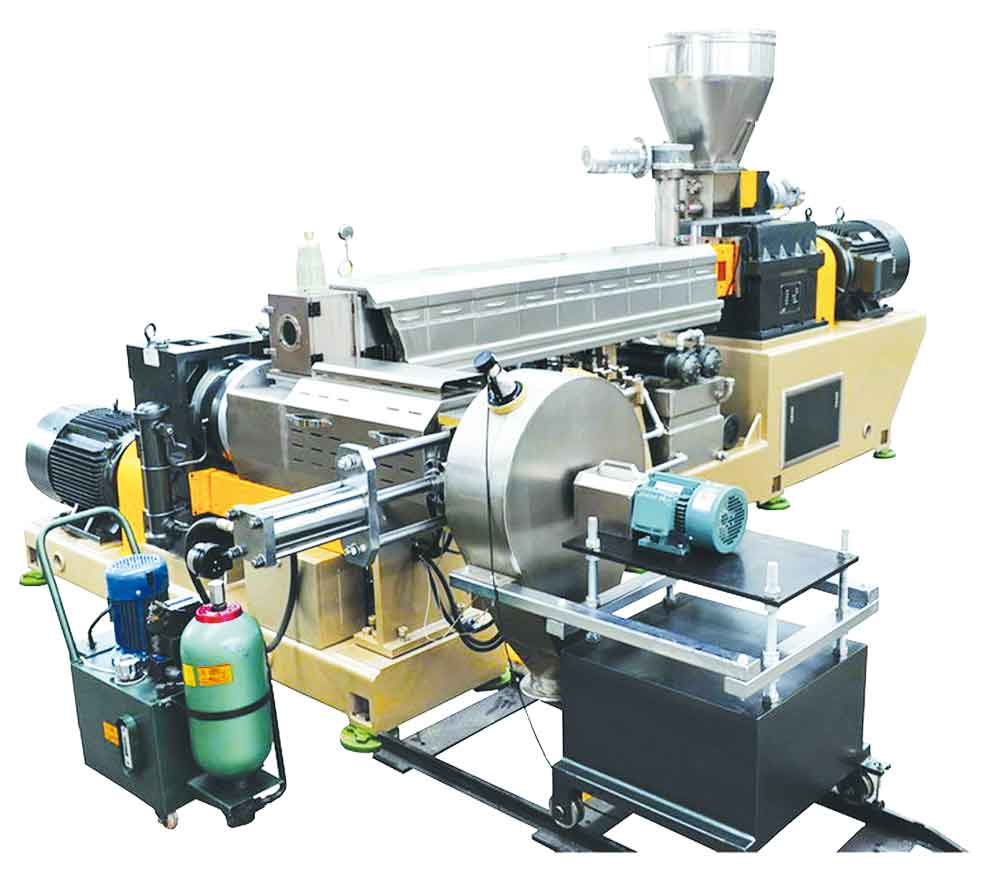

SDJ-Two Stage(Twin Screw/Single Screw)Compounding Extrudre Unit
Technical data for SDJ-Two Stage(Twin Screw/Single Screw) Compounding Extruder Uint
| 型号 | 螺杆直径 | 螺杆转速 | 长径比 | 功率 | 产量 |
| SDJ-65/150 | TSB-65 | 61.5 | 400/500 | 36-40 | 55-75 | 350-500 |
| SE-150 | 150 | 65/85 | 7-10 | 37-45 |
| SDJ-75/180 | TSB-75 | 71 | 400/500 | 36-40 | 90-110 | 600-800 |
| SE-180 | 180 | 65/85 | 7-10 | 45-55 |
| SDJ-85/200 | TSH-85 | 81 | 400/500 | 36-40 | 200-250 | 1000-1500 |
| SE-200 | 200 | 65/85 | 7-10 | 75-90 |
| SDJ-95/220 | TSH-95 | 91 | 400/500 | 36-40 | 400-500 | 1500-3500 |
| SE-220 | 220 | 65/85 | 7-10 | 90-110 |
| SDJ-110/300 | TSH-110 | 108 | 400/500 | 36-40 | 710-800 | 3000-4500 |
| SE-300 | 300 | 65/85 | 7-10 | 185-200 |

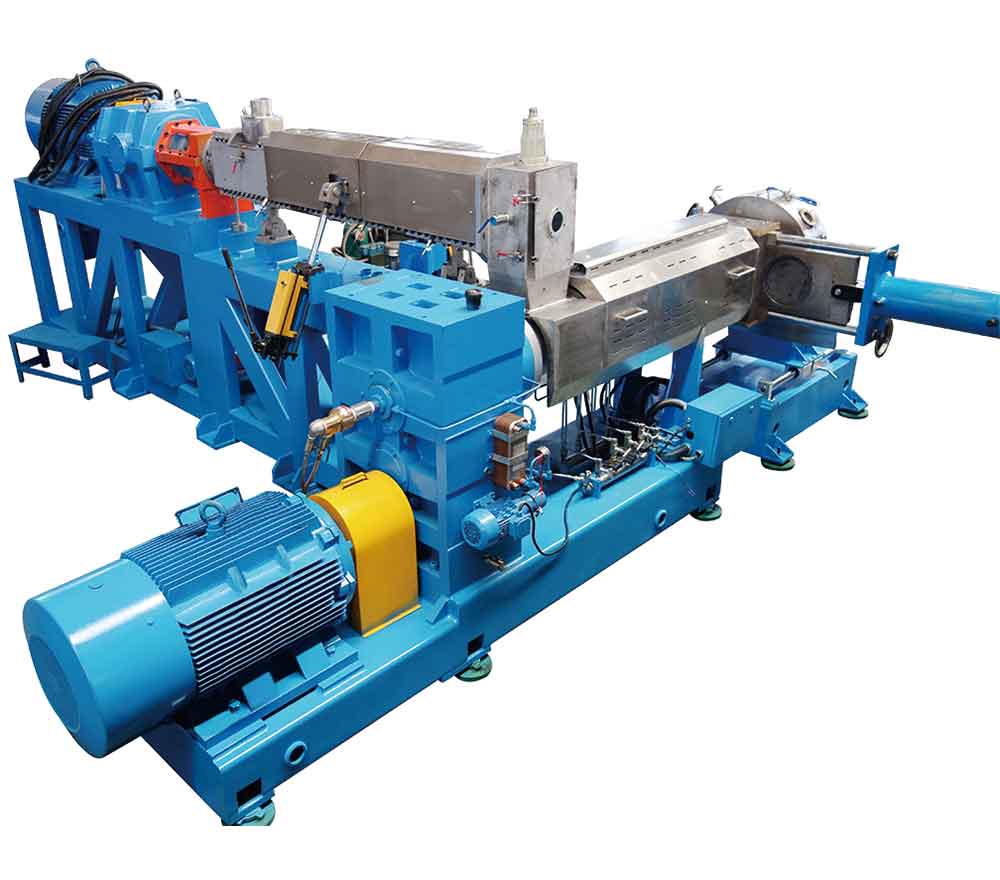

WHS-Two Stage(Reclprocating Kneader/Single Screw) Compounding Extruder Unit
Technical data for WHS-Two Stage (Reclprocating Kneader/Single Screw)Compounding Extruder Unit
| 型号 | 螺杆直径 | 螺杆转速 | 长径比 | 功率 | 产量 |
| GWHS-85/180 | GWH-85 | 85 | 400/500 | 15 | 160-200 | 800-1500 |
| SE-180 | 180 | 65/85 | 7-10 | 55-75 |
| GWHS-120/220 | GWH-120 | 120 | 400/500 | 15 | 280-400 | 1800-3000 |
| SE-220 | 220 | 65/85 | 7-10 | 90-110 |
Application of GWHS-Reciprocating Compounding Kneader in PVC Cable Material
Characteristic:
the production of the PVC cable material by the GWHS-high-performance four-screw reciprocating compounding kneader has the advantages that the energy consumption is saved by 20-40% compared to the universal equipment, and the plasticizing effect is more fully; Cooperate with automatic loading system, greatly reduce the labor intensity of employees; The maximum output of a single machine is 2-2.2 tons / hour. It is widely used in Jiangsu Yixing, Taicang and Shanghai, Hebei, Guangdong and other areas, and at the same time exported to Russia, Vietnam, etc.
